EPDM Single Flange Rubber Expansion Joint DN25-DN3000 PN6-PN40

Brand Name : ZHICHENG

Model Number : ZCF

Certification : CE / ISO

Place of Origin : Henan, China

MOQ : 1

Price : $13.20/sets 1-99 sets

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 100pic /5-7work days

Delivery Time : 5-8work days

Packaging Details : Inner: plastic film, then put into carton case.
Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.

Warranty : 1year

Customized support : ODM, OEM

Technics : Forged/vulcanization

Connection : Flange

Shape : Equal

Head Code : Round

Product name : Hot Selling Single Sphere Rubber Expansion Joint

Working Pressure : PN6-PN40

Working Temperature : -15℃-80℃(in special -30℃-150℃)

Applicable media : Air,water,sewage,acid,oil,etc.

Nominal diameter : DN25-DN3000

Flange material : Carbon steel galvanized,Stainless steel etc.

Rubber material : NR,EPDM,NBR etc.

Flange Standard : DIN,ANSI,JIS etc.

Factory address : Henan, China

Contact Now

Company Profile
Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Our mission: on product details, improve innovation, and meet user needs.
Our value: integrity and standardization, cooperation and win-win
Main products: rubber expansion joints, bellows expansion joints, metal hoses, double flange
disassembly joints, flange adapters ,fabric expansion joints, bellows
Product Description
Pump And Valve Connectors Tubular Waterproof Joints Flange Type Flexible
Epdm Expansion Joints

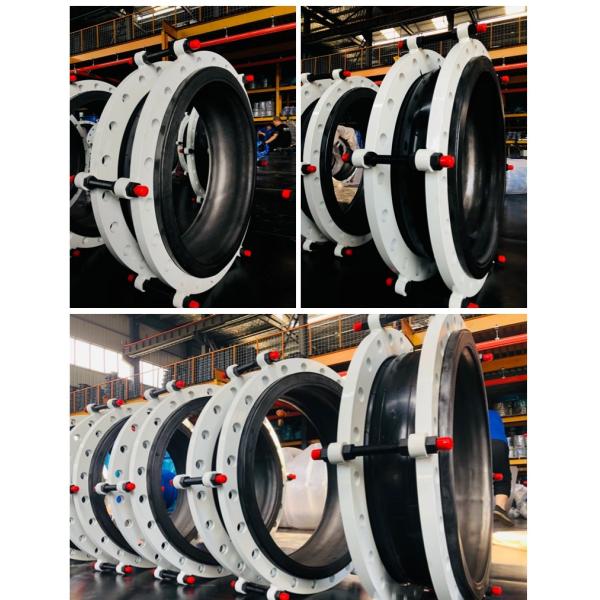

EPDM Single Flange Rubber Expansion Joint DN25-DN3000 PN6-PN40

EPDM Single Flange Rubber Expansion Joint DN25-DN3000 PN6-PN40
Specification
Material of rubber joint


No.
Name
Material
1
Outer/inner rubber
NR, NBR, EPDM, SBR, BR etc.
2
Frame
Nylon card fabric
3
Pressurized ring
Steel wire strand
4
Flange
Q235 carbon steel, 304 stainless steel etc.
Technical conditions of rubber joint



Type
1
2
3
Working pressure(Kg f/cm2)
1.0(10)
1.6(16)
2.5(25)
Explosion pressure(Kg f/cm2)
2.0(20)
3.0(30)
4.5(45)
Vacuum value(mmHg)
2.0(20)
86.7(650)
100(750)
Applicable temperature
-15℃ ~ +80 ℃ (-30℃~+150℃ special)


Applicable media
Air,compressed air,water,sea water,hot water,oil,acid and alkali etc



For offering you a qucik quotation,pls tell us
1.Which kind of media do you want to flow through the rubber expansion joint, water , oil or anything else ?
2.What's the nomial diameter of rubber expansion joint ?
3.What's the type of rubber expansion joint, equal or reducing shape ?
4.What's the material of rubber and flange, EPDM and stainless steel ?
5.What's the standard of flange, ANSI, DIN or anything else ?
6.What's the nominal pressure,150lb or 300lb ?
7.What's the length of rubber sphere?8.How many pieces of rubber expansion joints do you need in total ?

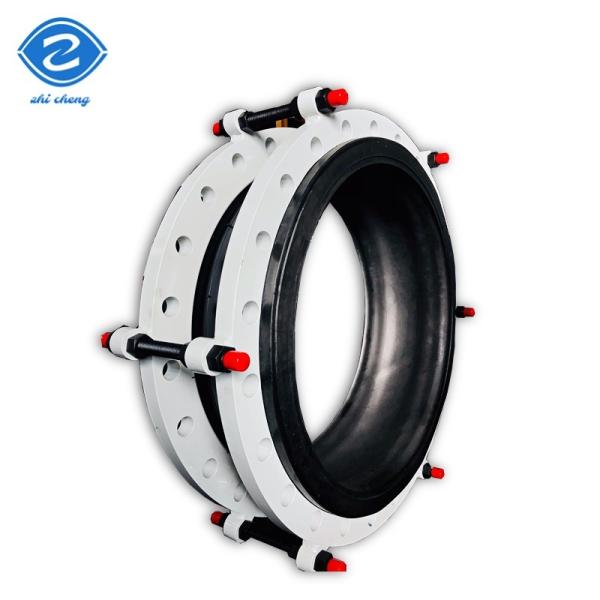

EPDM Single Flange Rubber Expansion Joint DN25-DN3000 PN6-PN40

Advantage of rubber expansion joint:
1.It excels in pressure resistance by the combination of spherical structure with super stability
against internal pressure and
strong special reinforcing .
2.Superior absorption of vibration-noise-shock
3.Compensate greater elongation, compression , lateral and angular movement
Classification of rubber joint

EPDM Single Flange Rubber Expansion Joint DN25-DN3000 PN6-PN40


Counterclamp type
If you want a quick quotation for rubber expansion joint, please let us know the following parameters:
1. Nominal diameter
2. Work pressure
3. Applicable medium
4. Material
5. Applicable temperature
6. Length
7. Quantity
Please click here to contact us and get more details!

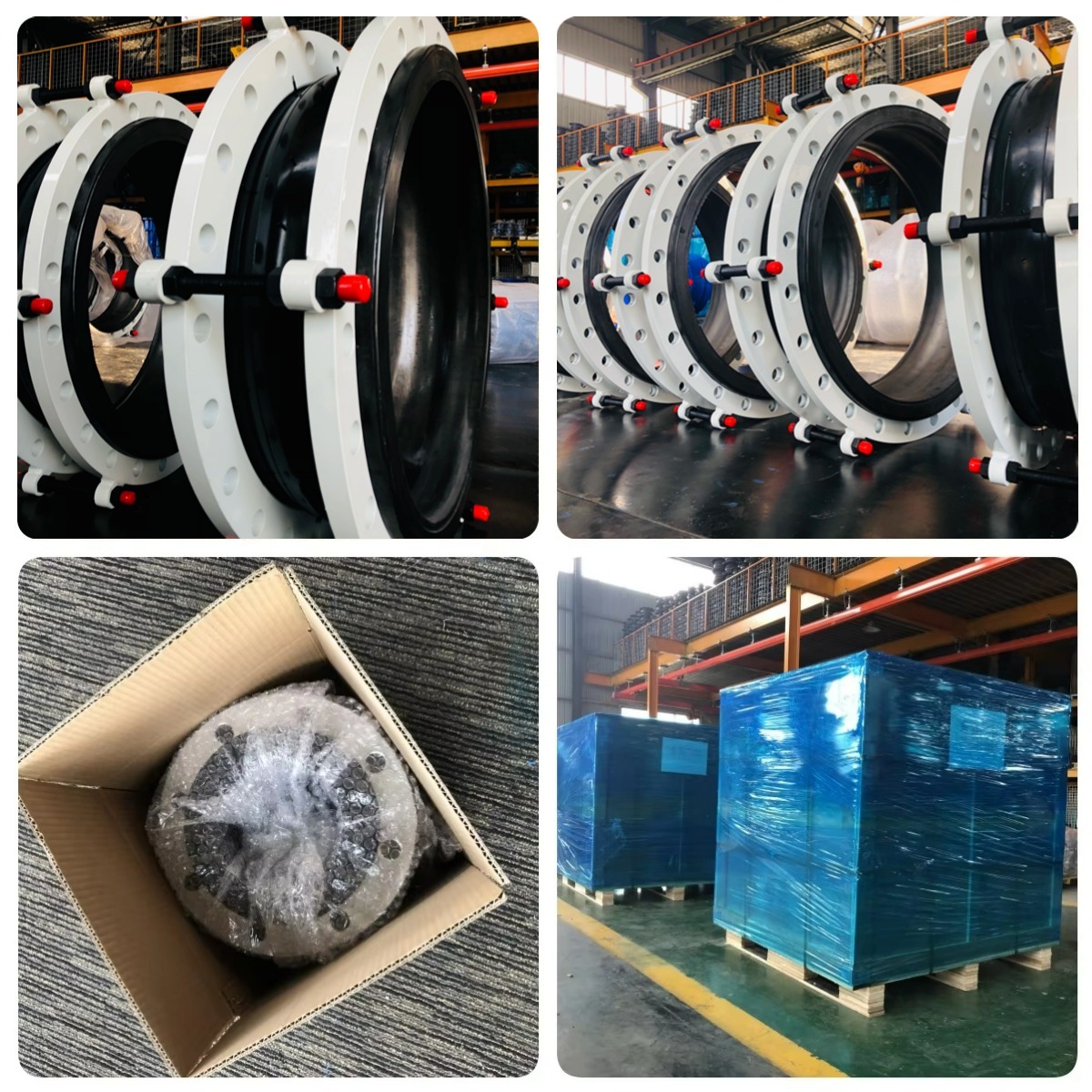

Packing & Delivery

EPDM Single Flange Rubber Expansion Joint DN25-DN3000 PN6-PN40

Shipping:
1.FedEx/DHL/UPS/TNT for sample. Door-to-Door
2.By Air or By Sea for batch goods for LCL/FCL;Airport /Port receiving
3.Customers specified freight forworders or negotiable shipping methods!

Delivery Time :
a.in stock:immediately b.sample:about 3 days c.OEM/ODM:about 15 DAYS
FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.

Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight.

Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.

Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to
consumer's requests.

Q: Do you accept small quantity order?
A: Of course we do.

Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity. Pls send
your detailed needs in the below and get a quick reply!
